HbbTV Launcher

HbbTV Launcher

This application is used to launch other applications on channels.

CONFIGURATION

Field	Data Type	Comment

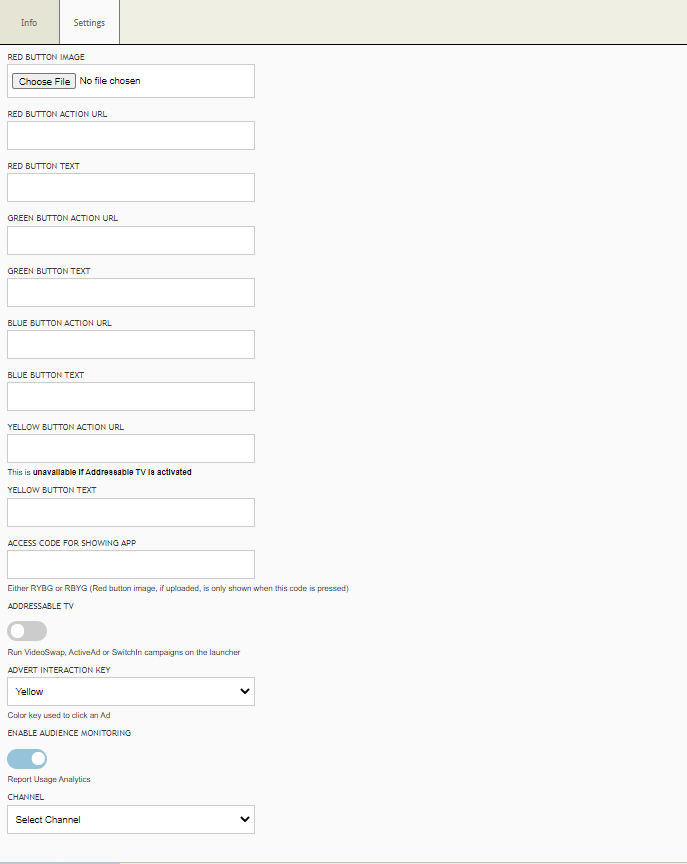

Red Button Image	Image File	Image to be used as red button in launcher
Red Button Action URL	String / URL	URL to move when user presses red button
Red Button Text	String	Text shown next to red button image
Green / Blue Button Action URL	String / URL	URL to move when user presses color button
Yellow Button Action URL	String / URL	URL to move when user presses Yellow button. This is disabled if Addressable TV is activated
Green / Blue / Yellow Button Text	String	Text shown next to colored button image
Access code for showing app	String	Application normally starts automatically. Putting a color code in here makes the application to start after user have given the color code.
Addressable TV	Checkbox	Are ad campaigns run with this launcher
Advert interaction key	Dropdown	Select the color button for user to activate ad
Enable Audience Monitoring	Checkbox	Activate Suite audience analytics for this launcher (and channel)
Channel	Dropdown	Select the channel where this launcher will start (channel list is from Suite Admin's channel list)

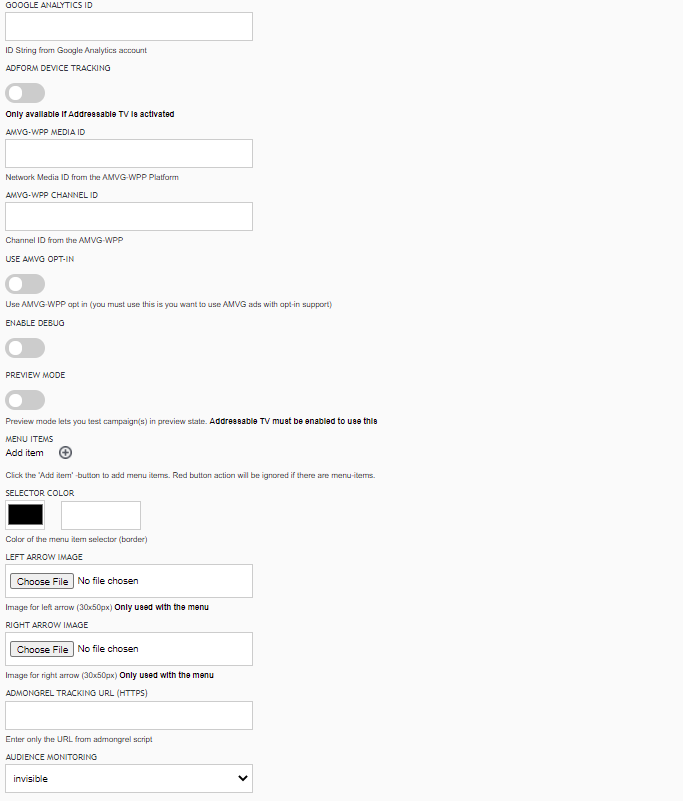

Google Analytics ID	String / Google analytics Id	Google analytics ID if you want reporting to Google Analytics account
Adform Device Tracking	Checkbox	Activate AdForm device tracking
AMVG-WPP Media ID	String / Media ID from AMVG	AMVG Media ID. Can be found in their admin.
AMVG-WPP Channel ID	String / Channel ID from AMVG	AMVG Channel ID. Can be found in their admin.
Use AMVG Opt-in	Checkbox	Activates AMVG opt-in. Will direct users to use AMVG opt-in. This will create a cookie to users television.
Enable Debug	Checkbox	Activates debug window on televisions. Only meant for development usage.
Preview Mode	Checkbox	Activates Preview mode in Addressable campaigns
Menu items	Title	Adding menu icons gives user an option to open Menu with Menu -button on remote control. In menu you can add other pages or applications which user can open. You can add as many menu items you want
Menu Items Icon	Image File	Image to show in the menu
Menu Items Text	String	String to show in the menu
Menu Items Action	String / Action	URL to launch when user selects this menu item
Selector Color	HEX Color Code (#XXXXXX)	Background color of the selected Menu item
Left / Right Arrow image	Image File	Image of the arrow's in the Menu
Admongrel Tracking URL	String / URL	Admongrel analytics URL.
Audience Monitoring	Dropdown	Suite Audience monitoring. Options: Disabled: Not in use Invisible: Always on (no permission asked from user) Opt-in: On default user is opted out to monitoring. User can choose to be in. Opt-out: On default user is opted in to monitoring. User can choose to be out.

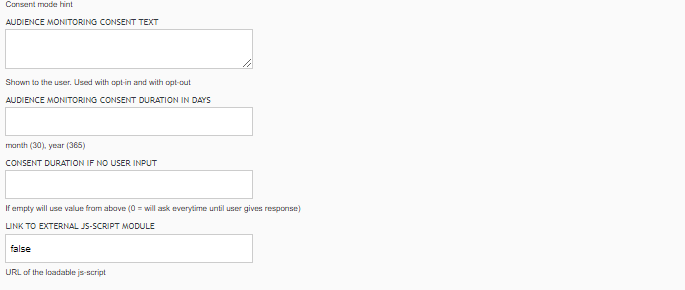

Audience Monitoring Consent Text	String / Textarea	Text shown for user in opt-in or opt-out -options in Audience Monitorin
Audience Monitoring Consent Duration in Days	Number / Days	Number of days when user will be asked about opt-in/opt-out if he chooses to opt-in/opt-out
Consent Duration if No User Input	Number / Days	Consent window will close automatically after few seconds  and this is the number of days when user will be asked about opt-in/opt-out if he doesn't give input. - Giving value 0 in here will ask the consent next time user comes to channel. - Default is same as value above.
Link to external JS script module	String / URL	This javascript file will be loaded to the page (on body). Doesn't do anything else with the file (doesn't run functions etc).
