Adding new Channels

Adding new Channels

FEATURES

Icareus Suite's Channel Management Details -sheet is used for managing single channel configuration or adding a new Channel.
The parameters that are used with channels are e.g.:
#
Parameter
Comments
Mandatory
1
ORGANIZATION ID
Automatically taken from Suite
Yes
2
SYSTEM ID
Automatically taken from Suite
Yes
3
LOGICAL CHANNEL NUMBER
Channel number on Icareus Suite
Yes
4
NAME
Name of the channel
Yes
5
DESCRIPTION
Short description of the channel
No
6ASPECT RATIO
16:9 or 4:3 video ratio of the stream
Yes
7PRIMARY LANGUAGE
Language of the channel. Used in filters.
Yes
8
INGEST URL
URL where the stream is ingested when it is recorded, which is configures to stream source (e.g. encoder)
No
9
STREAM NAME
Name of the stream, which is configures to stream source (e.g. encoder)
No
10
AUTO RECORD
Check, if the stream is recorded
No
11
QUALITY
SD or HD
Yes
12
VISIBILITY
Private (if premium channel) or Public if Free-to-air channel
Yes
13
ICONS
Channel Icons, three (3) different sizes.
No
14
ADDITIONAL CONFIGURATION
A text box that enable to set custom paramters that can be used on various clients, e.g. for IP filtering access to the channel
Yes
Changes on those parameters are saved by pushing the 'Save' button at the bottom of middle section.

ADDING THE NEW CHANNEL

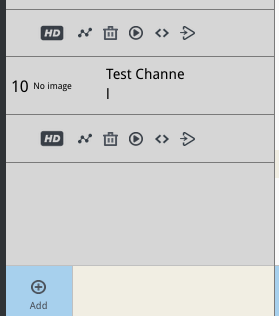

Adding the new channel, you must push 'Add' -button at the bottom of the channel list menu.
Then there will be an empty Details form.
Adding a new channel details is done on the on this page:


Push “Add button” if the form is not empty
Write channel number to “LOGICAL CHANNEL NUMBER”
Write channel name number to “NAME”
Write channel description to “DESCRIPTION” (Optional)

  1. Push “Add button” if the form is not empty
  2. Write channel number to “LOGICAL CHANNEL NUMBER” (Mandatory)
  3. Write channel name number to “NAME” (Mandatory)
  4. Write channel description to “DESCRIPTION” (Optional)
  5. Select aspect ratio 4:3 or 16:9  (Mandatory)
  6. Select language (Optional, used only, if channels are grouped based on language)
  7. Select Audio only, if the channel is Radio channel (Optional)
  8. Select Categories (Optional, used only, if large amount of channels)
  9. Publishing Info (Do not add):
    1. Ingest URL (Automatically provided by Suite)
    2. Stream name (Automatically provided by Suite)
  10. Timeshift:
  11. Timeshift duration (Optional, used only if the channel streams are delayed, "DelayTV")
  12. Timeshift timezone (Optional)



  • Select SD or HD for channel video quality (Optional)
  • Select visibility: (Mandatory)
    • Private : End-user must login to service
    • Public : Everybody sees, who has URL
    • Exclusive : Must include to content Package
  • Open Channel Icons. Size e.g. 140x140 px, can be same for every Small/Medium/Large (Optional)

After you have filled at least the Mandatory parameters to Details form, push 'Save' button to create the new channel. The Channel is ready!
