HbbTV Channel Weekly EPG New
HbbTV Channel Weekly EPG New
Shows weeks EPG (Electronic Programme Guide) application. Difference between old HbbTV Channel Weekly EPG is that with this you can select position of broadcast window.

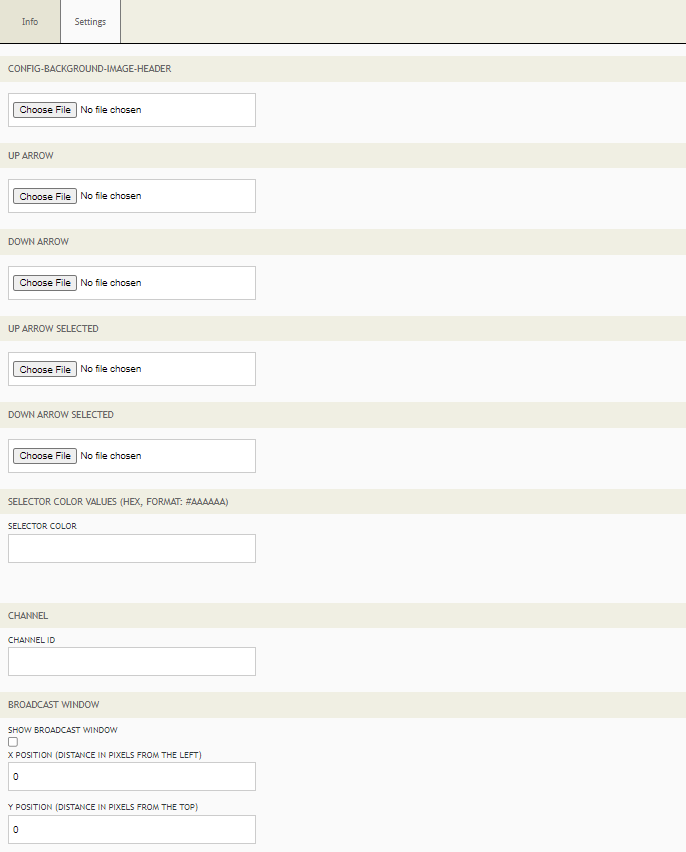

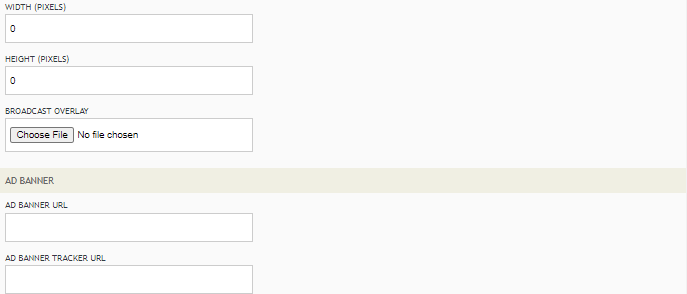

CONFIGURATION
| Field | Data Type | Comments |
| Background Image | Image File | Application background image |
| Up / Down Arrow | Image File | Image shown as up/down arrow, when unselected |
| Selected Up / Down Arrow | Image File | Image shown as up/down arrow, when selected |
| Selector Color | HEX Color Code (#XXXXXX) | Color of the selected EPG info |
| Channel ID | String / Channel ID | Suite Channel ID (which channels EPG to load) |
Show Broadcast window | Checkbox | Toggle Broadcast window visibility |
| X Position | Number / Pixels | Position of broadcast window from left |
Y Position | Number / Pixels | Position of broadcast window from top |
Width | Number / Pixels | Broadcast windows width |
Height | Number / Pixels | Broadcast windows height |
Broadast overlay | Image File | Image to show if broadcast is not active |
| Ad Banner URL | String / URL | URL where you can load the ad banner |
| Ad Banner Tracker URL | String / URL | Ad's tracker URL |
