Transitions

Introduction

Studio includes various transitions that can be placed between two video clips during editing, to enhance the view of moving from one video clip to another in some manner.

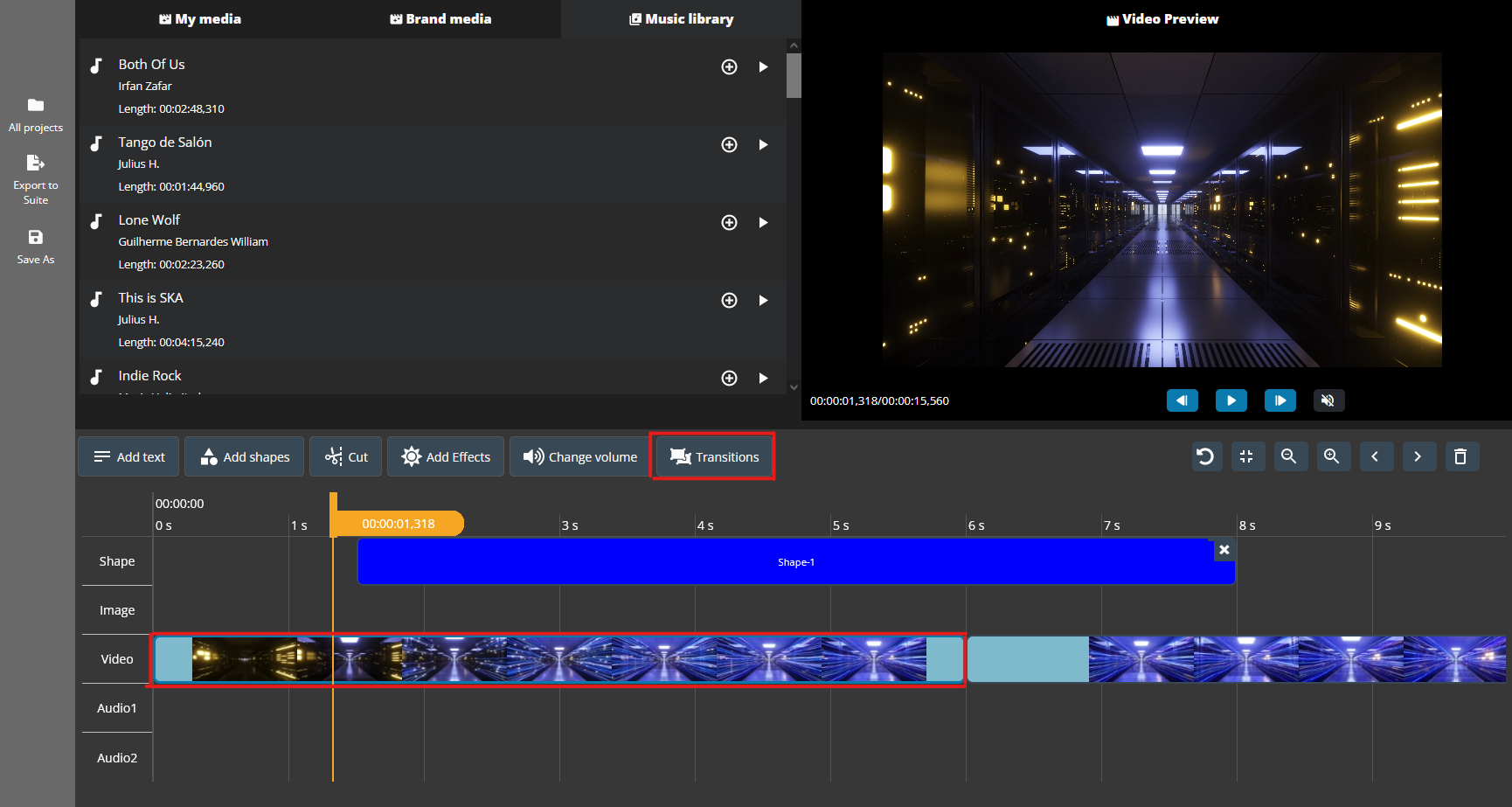

They can be accessed by first selecting the video clip that will be transitioning into another, and then the Transitions button.

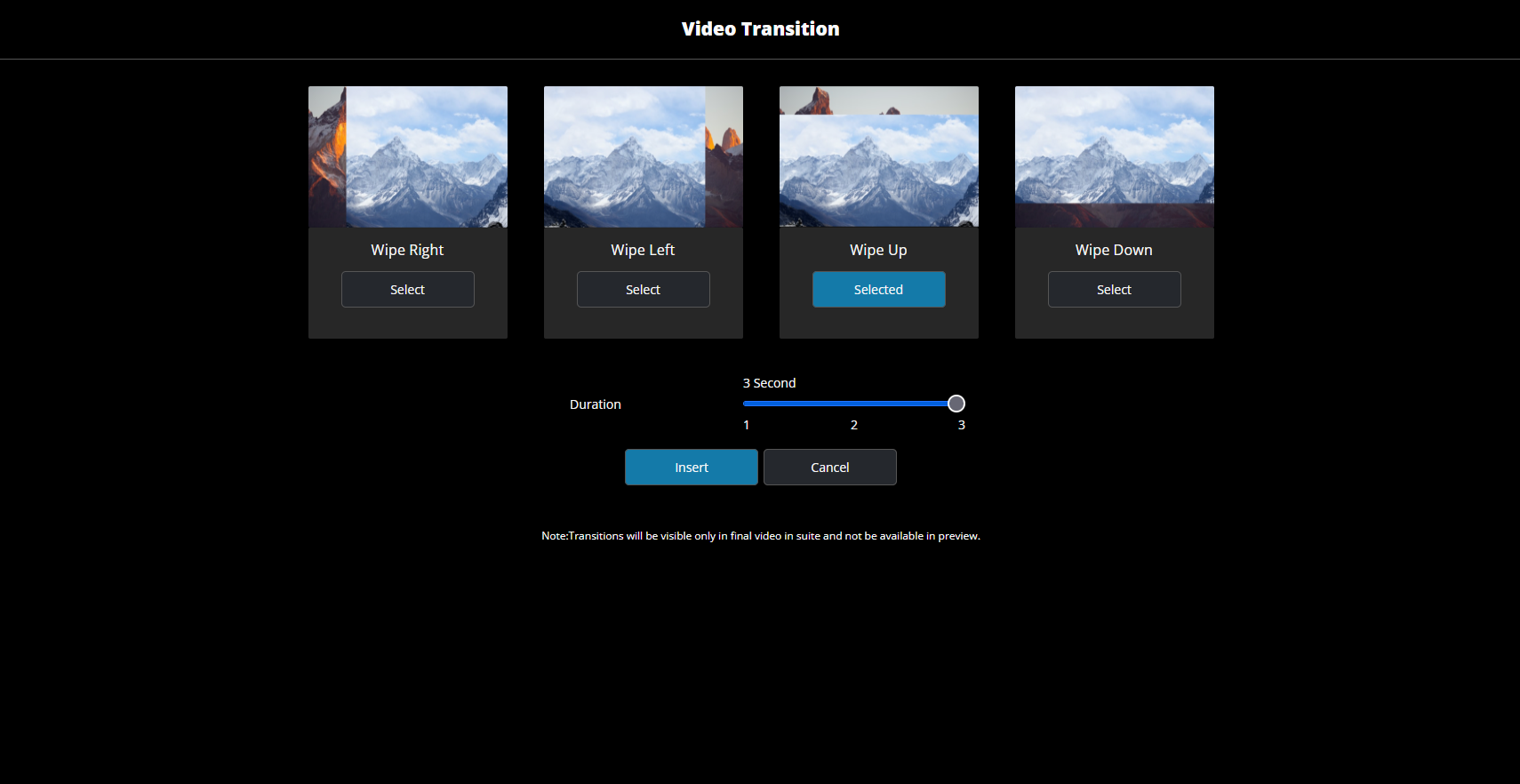

This opens the Video Transition menu, from which the actual transitions can be selected.

Currently, there are four Wipe transitions. With this kind of transition, the selected scene will be replaced by another by having the new one travel from one side of the frame to the other.

Wipe Right: The transition will start from the left, and move to the right

Wipe Left: The transition will start from the right, and move to the left.

Wipe Up: The transition will start from the bottom, and move up.

Wipe Down: The transition will start from the top, and move down.

Once you've selected the transition you want to use, you can choose to change the duration of the transition effect - with the options being 1-3 seconds - or leave it as is. The default duration is 3 seconds, as shown in the above image. This means that the transition will take 3 seconds to complete.

Insert the selected transition by clicking insert. If you haven't selected a transition, this cannot be selected.

Transitions will be visible only in the final video exported to Suite. It cannot be viewed in the Studio preview.

When a transition has been added to a video clip, this icon will be shown appended to the righthand corner of it.

Edit or delete transition

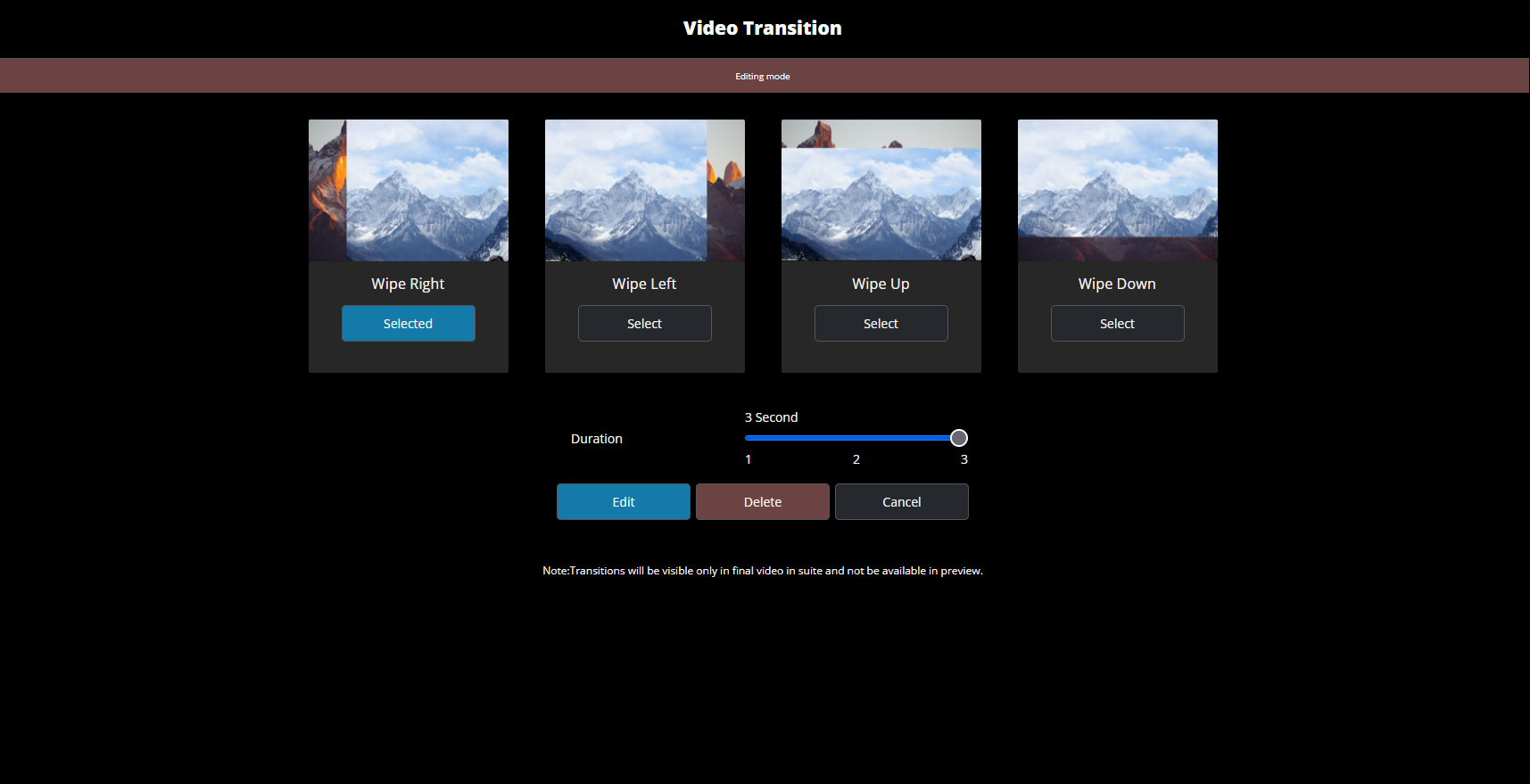

You can edit or delete the added transition by first selecting the video clip you have added the transition to, then selecting Transitions again to enter the video transition menu in editing mode.

The transition you have currently active is shown as selected. You can change the transition by selecting one of the others. You can also change the duration. Clicking edit will save the choices you've made in the editing mode. You can also delete the transition entirely by clicking the delete button. If you wish to do nothing and undo any edits you may have made, click cancel to leave the menu.
