Server

Server

Info

Info page shows information about the Icareus Playout license installed on the server.

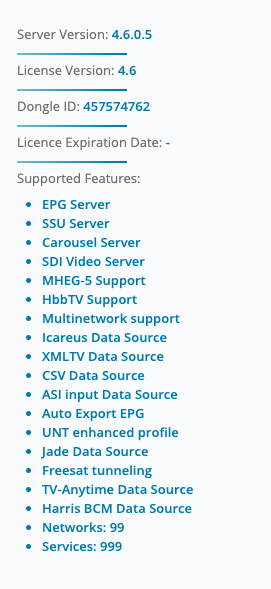

Example of server info

Update License

Update license page enables the admin to update/upgrade the Icareus Playout License.
To update your license you will need to have the license file provided by Icareus at hand.

Export/Import Settings

Export

These pages enable the admin to export and import all configurations of Icareus Playout server to be used as back-up or to move the settings to another server.
The service will use the browser's memory to transfer data. Browsers have limited memory sizes reserved for this use (example: Opera 500MiB, IE 600MiB, Firefox 800MiB and Chrome 2GB). If the zip folder of transferred files exceed this size then the download might fail.
Information about the version of Playout release used is attached to the zipped file. It must match the version of Playout release in the server where the zipped file will be imported.
It is always a good practice to export all configurations after Playout release update to ensure compatibility between the data to be imported and the current Playout release.


Export Settings
Exports all settings of the server

Export Services
Exports all services, applications and networks and their configurations

Export Application Files
Includes all files contained in the DSM-CC and SSU carousels into the export

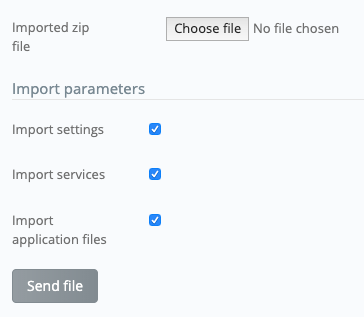

Import

Import overrides the existing system settings and other configurations
Imported zip file
The Icareus format Import/Export .zip file that is used to transfer settings between Icareus Playout servers

Import Settings
If server settings should be imported

Import Services
If all service, application and network settings should be imported

Import Application Files
If all DSM-CC and SSU carousel files should be imported
