HbbTV EPG Newspaper
HbbTV EPG Newspaper
Presents EPG data in a newspaper like format.

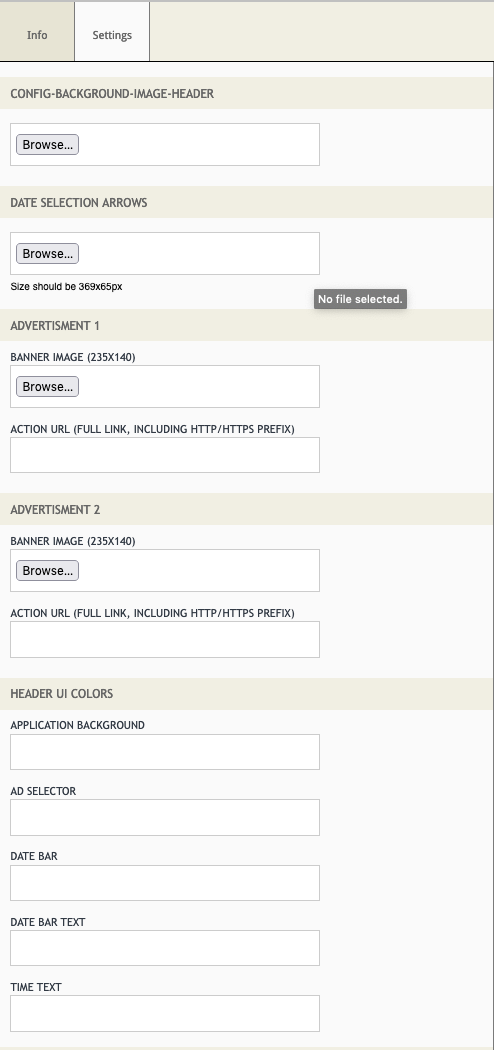

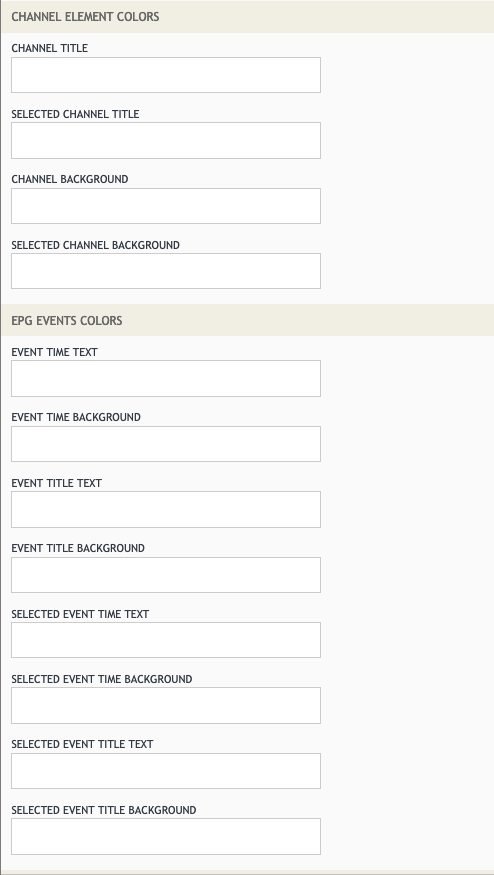

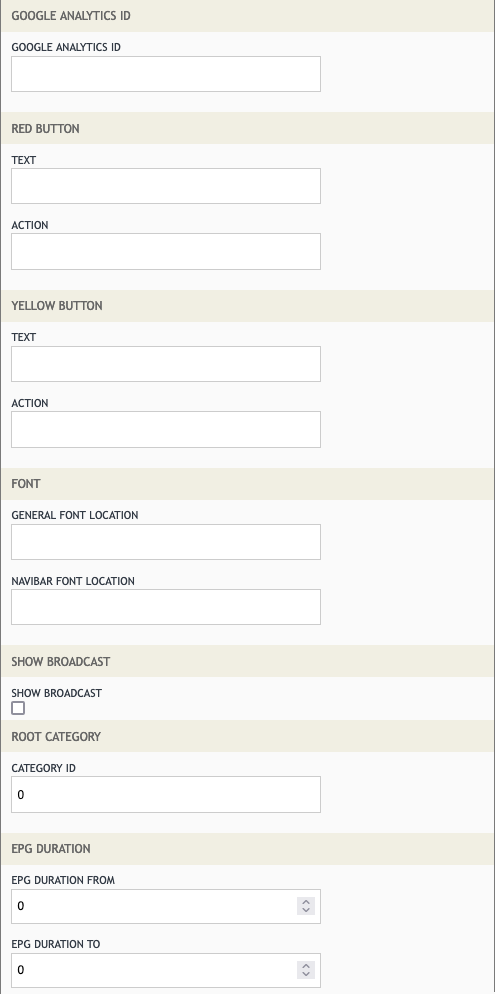

CONFIGURATION
Field | Data Type | Comments |
Application Logo (250x150) | Image File | Logo for application |
Background Image | Image File | Application background image |
Advertisment 1 - Banner Image | Image File | Image for an advert |
Advertisment 1 - Action URL (full link, including http/https prefix) | String/URL | A URL (preferaby HTTPS) to launcher from the advert |
Advertisment 2 - Banner Image (235x140) | Image File | Image for an advert |
Advertisment 2 - Action URL (full link, including http/https prefix) | String/URL | A URL (preferaby HTTPS) to launcher from the advert |
Application background | HEX Color Code (#XXXXXX) | Color for background |
Ad selector | HEX Color Code (#XXXXXX) | Color for selector outline for ads |
Date bar | HEX Color Code (#XXXXXX) | Color for date bar |
Date bar text | HEX Color Code (#XXXXXX) | Color for date bar text |
Time text | HEX Color Code (#XXXXXX) | Color for time text |
Channel title | HEX Color Code (#XXXXXX) | Color for channel title |
Selected channel title | HEX Color Code (#XXXXXX) | Color for selected channel title |
Channel background | HEX Color Code (#XXXXXX) | Color for channel background |
Selected channel background | HEX Color Code (#XXXXXX) | Color for selected channel background |
Event time text | HEX Color Code (#XXXXXX) | Event time text color |
Event time background | HEX Color Code (#XXXXXX) | Event time background color |
Event title text | HEX Color Code (#XXXXXX) | Event title text color |
Event title background | HEX Color Code (#XXXXXX) | Event title background color |
Selected event time text | HEX Color Code (#XXXXXX) | Selected event time text color |
Selected event time background | HEX Color Code (#XXXXXX) | Selected event time background color |
Selected event title text | HEX Color Code (#XXXXXX) | Selected event title text color |
Selected event title background | HEX Color Code (#XXXXXX) | Selected event title background color |
Google Analytics ID | String / Google Analytics ID | Google Analytics ID if want reporting to Google Analytics account |
Red button Text | String | Text to show next to Red Button |
Red button Action | String/URL | A URL to launch from pressing Red Button |
Yellow button Text | String | Text to show next to Yellow Button |
Yellow button Action | String/URL | A URL to launch from pressing Yellow Button |
Font URL | String/URL | URL to load a custom font |
Show PiP | Checkbox | Whether to show broadcast window |
Category ID | Number | Channel Category ID from Suite, if want to show channels only in specific category |
EPG Duration From | Number/Days | From how many days to start showing EPG Data |
EPG Duration To | Number/Days | For how many days in future to show EPG data |
